XML Signer User Manual

Add a digital signature to your XML documents in a few clicks, sign whole folders automatically, and check signed documents with XML Signer Viewer. No technical knowledge needed; developers find PowerShell, C# and VB.NET examples at the end.

1. What is XML Signer?

An XML document (for example an electronic invoice) can be changed by anyone who has the file. A digital signature solves two problems:

• Who signed it? The signature is created with your personal digital certificate, so it proves your identity.
• Was it changed? If even one character of the document is modified after signing, the signature is reported as not valid.

The main function of XML Signer is to sign XML files with X.509 digital certificates. You can sign a single document, or select an input folder and an output folder and sign hundreds of documents at once (bulk signing), which is ideal for the documents of a company. The same signatures can be created automatically, without any window, from the command line (section 12).

The product has two programs:

Who is this manual for?

• Users — sections 1 to 13 explain, step by step, how to install the product, register it, choose a certificate and sign documents.
• Developers and administrators — sections 14 to 16 explain that XML Signer is built on the Signature Library (SignLib), and show how to create the same XAdES signatures from Windows PowerShell, C# or VB.NET. One of the purposes of XML Signer is to let you see what the library can do before you write a single line of code.

Useful links

2. Product installation

We recommend installing the product with an Administrator account. After the setup file is verified, the operating system might ask for your permission to install the program: click Yes.

What you need

• Windows 7 or later (including Windows 10, Windows 11 and Windows Server).
• Microsoft .NET Framework 4.6.2 or newer. It is already part of Windows 10 and Windows 11.
• A digital certificate to sign with. If you do not have one yet, you can create a test certificate (section 9).

Installation steps

1. Download the setup file. Get XMLSigner.msi from the product page and run it.
2. If Windows SmartScreen appears, allow the program to run. You may see the window Windows protected your PC. Click More info and then Run anyway. See the explanation below.

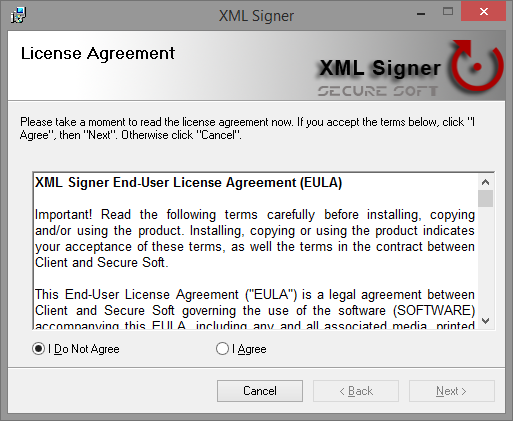

3. Read the license agreement. Read the EULA (End-User License Agreement). If you want to continue, select I Agree and click Next until the setup is finished.
4. Start the program. The setup installs XML Signer and XML Signer Viewer. Start them from the Windows Start menu. By default the files are in the Secure Soft\XML Signer folder of Program Files (on a 64-bit Windows: C:\Program Files (x86)\Secure Soft\XML Signer).

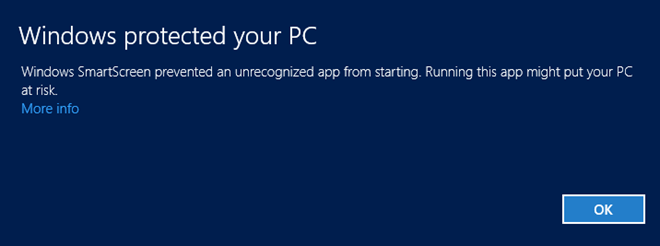

What is Windows SmartScreen?

SmartScreen is a protection built into Windows. When you run a program you downloaded, Windows compares it with a list of programs that are known and were already downloaded by many people. A program that Windows does not know yet, for example a new version that was published recently, is shown as an unrecognized app, and the window below appears.

This message does not mean that the file contains a virus. It only means that Windows has no reputation data about it yet. To continue:

1. Click More info. The name of the file and of the publisher are displayed.
2. Click Run anyway and the setup starts.

3. Trial period and product registration

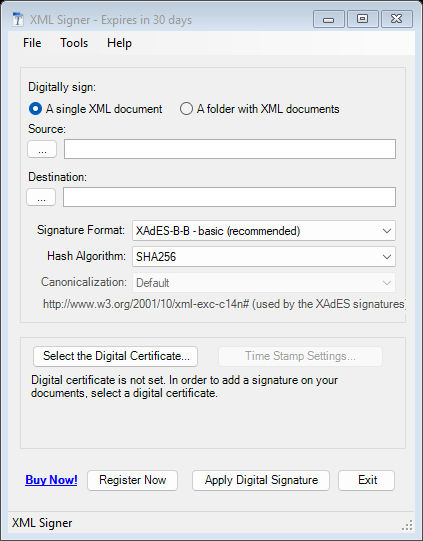

A new, unregistered installation works for a trial period of about 30 days. The title of the window shows how much is left, for example XML Signer - Expires in 30 days, and the buttons Register Now and Buy Now! are visible.

How to register the product

1. Get a serial number. To register the product you need a serial number (also called license code). You can buy it online directly from the product page, https://www.signfiles.com/xml-signer/. You can also click Buy Now! in the program, which opens the same page.

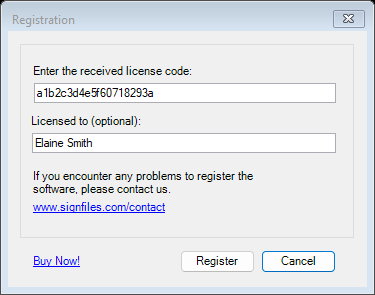

2. Open the registration window. Open XML Signer and click the Register Now button (or Help → Register Now...).
3. Type the license code. Enter the received serial in the first box. The second box, Licensed to (optional), is for a name: if you type one, it is shown in the title of the window.

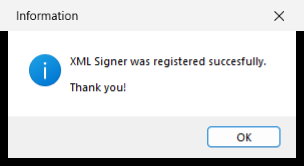

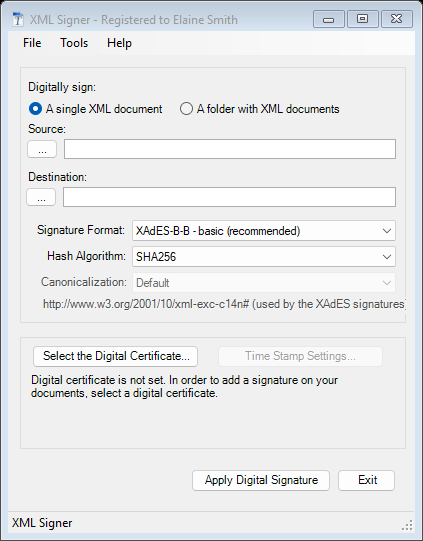

4. Click Register. If the serial number is correct, the product is successfully registered.

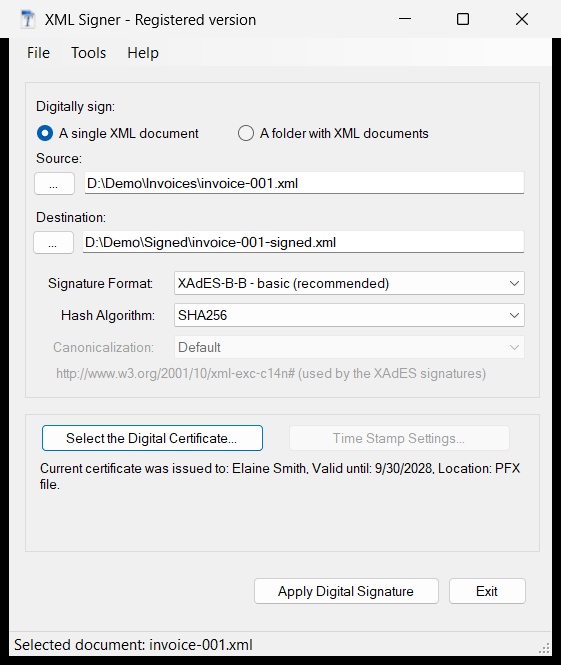

4. Sign your first document

This is the whole process. It takes less than a minute once you have a certificate.

1. Choose the document. Keep A single XML document selected. Click the ... button under Source and select the XML file you want to sign.
2. Choose where to save the signed copy. Click the ... button under Destination and pick a folder and a file name (for example invoice-001-signed.xml). The destination must be a different file from the source.
3. Select your digital certificate. Click Select the Digital Certificate.... Choose the certificate from the Windows store, or a .pfx file, and click OK (details in section 6).
4. Leave the format on the recommended value. XAdES-B-B - basic (recommended) and SHA256 are already selected and are the right choice for most uses (see section 7).

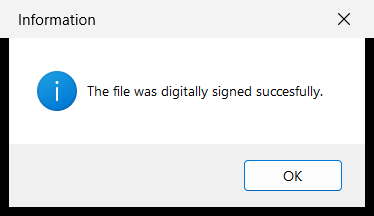

5. Click Apply Digital Signature. After a moment you see the message The file was digitally signed succesfully. Your signed document is in the destination you chose.

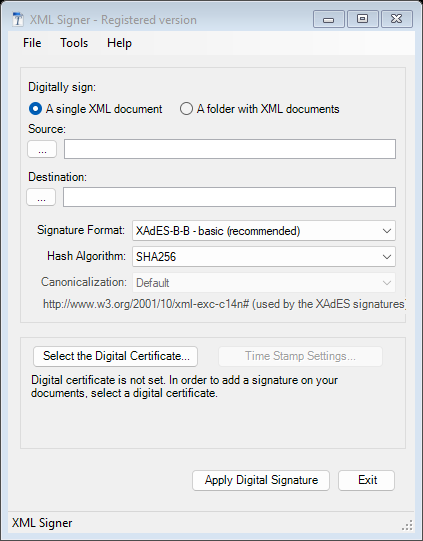

5. The main window

Menus

6. Digital certificates

A digital certificate is your electronic identity card, issued by a certification authority. To sign with XML Signer you need one. This section explains where certificates are kept and how to select the one you want to sign with.

6.1 Where the certificates are stored

A certificate that can sign documents has two parts: a public key (the part other people see, inside the certificate) and a private key (the secret part, which only you have). The digital signature is created with the private key. The certificates are kept in two places:

• in the Windows Certificate Store (called Microsoft Store in the program);
• in a PFX (or P12) file.

The Windows Certificate Store (Microsoft Store)

The Windows Certificate Store is the place where Windows keeps the certificates of the computer and of each user. In XML Signer it appears as Windows Certificate Store and Certificates Available on Microsoft Store.

To see the certificates of your account:

1. Press Win + R, type certmgr.msc and press Enter.
2. Open Personal → Certificates.

(The older way still works: Internet Options → Content tab → Certificates button, tab Personal.)

To create digital signatures, the certificates of the Personal store are used. They must have a public and a private key. You can check this by opening a certificate: in the General tab Windows writes You have a private key that corresponds to this certificate.

The private key itself can be stored:

• on the file system of the computer (for example, an imported PFX file);
• on a cryptographic smart card or USB token (like Aladdin eToken or SafeNet iKey) — see 6.2;
• on an HSM (Hardware Security Module), a device that keeps keys for a company.

The certificates you can use are listed per store location: Current User (your own certificates, the usual case) or Local Machine (certificates installed for all the users of the computer).

PFX and P12 files

Another way to keep a digital certificate is a PFX (or P12) file. The file contains the public and the private key of the certificate, and it is protected by a password, to keep the key pair safe.

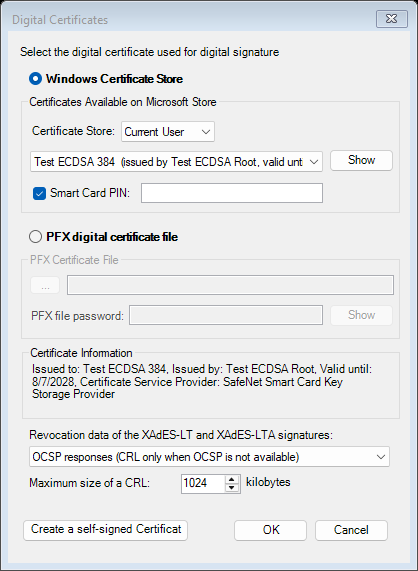

6.2 Certificates stored on smart cards or USB tokens

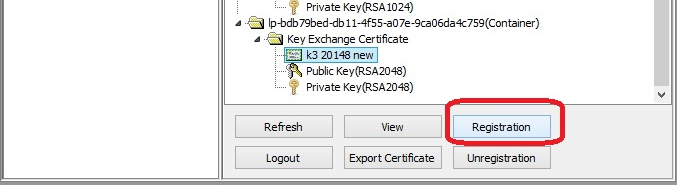

If your certificate is stored on a smart card or on a USB token (like Aladdin eToken or SafeNet), the private key never leaves the device: it signs inside the device. For XML Signer to use it, the certificate must appear in the Windows Certificate Store (6.1).

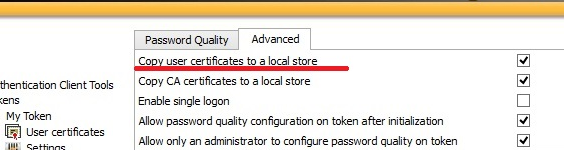

Usually, the driver of the smart card or its middleware (the software delivered with the token) installs the certificate in the Windows store automatically when the token is connected. If the certificate does not appear in the list, ask your vendor how to add it to the store, and look at the options of the middleware, like below:

Once the certificate is in the store, select it in XML Signer as described in 6.3.

6.3 Select the digital certificate for creating signatures

To digitally sign a document, a digital certificate must be selected first. Click Select the Digital Certificate... (or Tools → Select the Digital Certificate...). The certificate can be stored in the Windows store or in a PFX file.

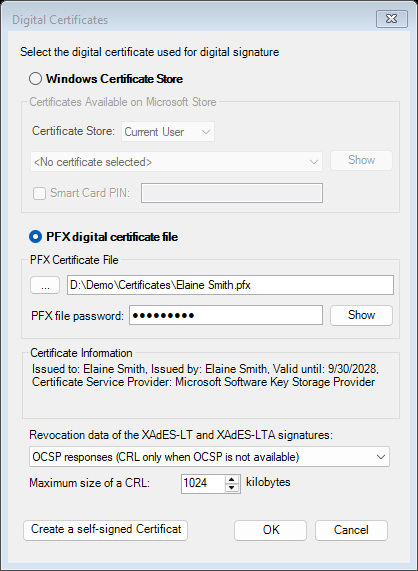

Option A: a PFX file

Some certificates are delivered as a file with the extension .pfx (or .p12), protected by a password.

1. Select PFX digital certificate file.
2. Click ... and pick your .pfx file (or type its path).
3. Type the PFX file password. The Show button next to it displays the details of the certificate so you can check you picked the right one.
4. Click OK.

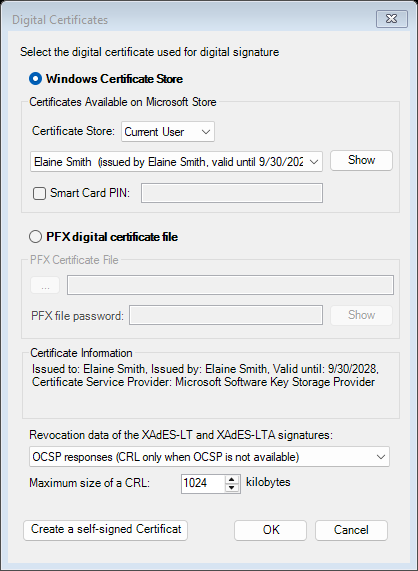

Option B: a certificate installed in Windows

Certificates installed on the computer, or stored on a USB token or smart card, appear in the Windows Certificate Store.

1. Select Windows Certificate Store.
2. In Certificate Store choose Current User (your own certificates, the usual case) or Local Machine (certificates installed for the whole computer).
3. Pick your certificate from the list Certificates Available on Microsoft Store. The list shows the name of the owner, the issuer and the expiry date; an expired certificate is marked EXPIRED and is placed at the end. Show displays the full certificate.
4. Click OK.

Certificate Information

At the bottom of the window, Certificate Information summarizes the selected certificate: to whom and by whom it was issued, until when it is valid, and Certificate Service Provider. The last one is the name of the software (or of the device driver) that manages the private key of the certificate. It helps you understand where the key is:

(The abbreviations are CSP, Cryptographic Service Provider, for the classic providers, and KSP, Key Storage Provider, for the newer ones. You do not have to choose them: XML Signer uses the provider of the certificate.) If the private key is not available on this computer, the line The private key is not available is added.

Long-term validation data

At the bottom of the window, Revocation data of the XAdES-LT and XAdES-LTA signatures chooses what proof of validity is saved inside those signatures (see section 7):

• OCSP responses (CRL only when OCSP is not available) — the default and the best choice for most users.
• CRLs, CRLs and OCSP responses, or No revocation data (only the certificates).
• Maximum size of a CRL (default 1024 kilobytes) limits how large a revocation list may be to be included.

The button Create a self-signed Certificate... at the bottom left is explained in section 9.

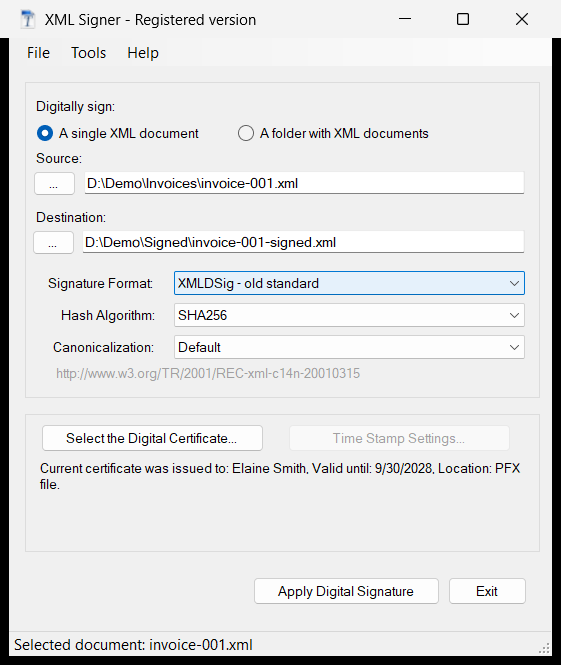

7. Signature formats

The format decides how much information is stored inside the signature. If you are not sure, keep the first one.

XAdES is the European standard for advanced electronic signatures. The letters B, T, LT and LTA come from the standard: Basic, Time-stamp, Long Term and Long Term Archival.

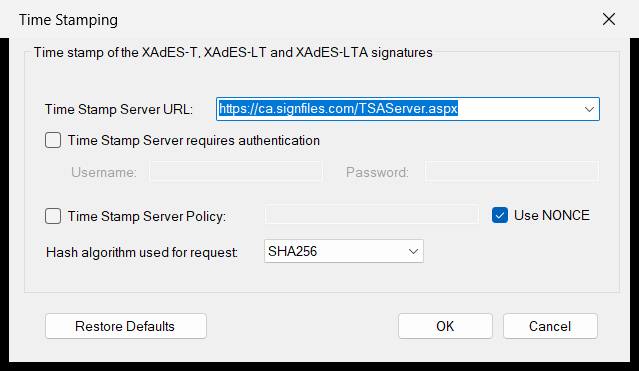

8. Time stamp settings

A time stamp is issued by a Time Stamp Authority (TSA), an independent service. It proves that your signature existed at a given moment and cannot be back-dated. It is used by XAdES-B-T, -LT and -LTA. Open it with Time Stamp Settings....

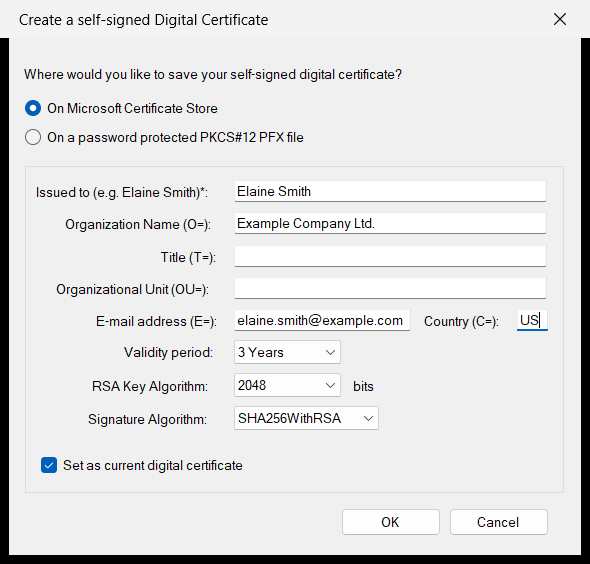

9. Creating a test certificate

If you do not have a certificate yet and only want to try the program, XML Signer can create a self-signed one. Open Tools → Create a self-signed Digital Certificate... (or the button in the certificate window).

1. Choose where to save it: On Microsoft Certificate Store or On a password protected PKCS#12 PFX file (you will be asked for the file name and a password).
2. Type Issued to (your name, required) and, if you wish, the organization, unit, title, e-mail address and country code.
3. Choose the Validity period (default 3 years), the RSA Key Algorithm length (default 2048 bits) and the Signature Algorithm (default SHA256WithRSA). The defaults are fine.
4. Keep Set as current digital certificate ticked to use it right away, then click OK.

10. Signing a whole folder

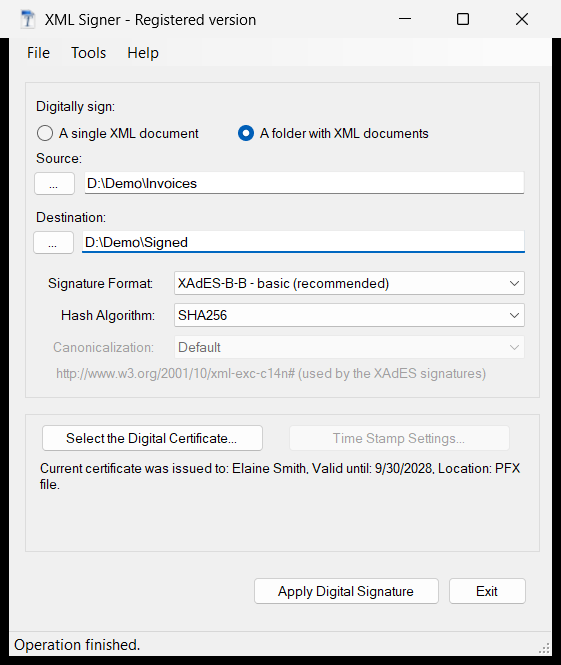

To sign many documents at once, select A folder with XML documents.

1. Under Source choose the folder with your XML documents.
2. Under Destination choose another folder. Each .xml file of the source folder is signed and saved with the same name in the destination folder. The source and the destination must be different folders.

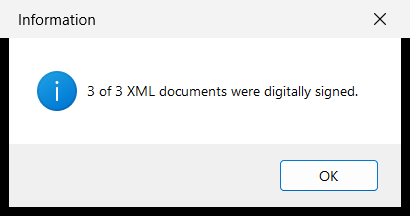

3. Click Apply Digital Signature. When it finishes you see how many documents were signed.

11. Saving your settings

The program remembers your choices (certificate, format, hash algorithm, time stamp server...) the next time you start it. You can also keep several sets of settings in files — for example one for invoices and one for contracts:

• File → Save Configuration As... saves the current settings in a file you name.
• File → Load Configuration... loads them again.
• Tools → Restore Defaults returns everything to the original values.

A saved configuration file is also what the command line uses to sign documents automatically.

12. Batch signatures (automatically made without user intervention)

XML Signer can also sign without showing its window, for example from a scheduled task, from a script or from another program. Nobody has to click anything: the program reads the settings from a configuration file, signs, and closes.

By default, XML Signer is installed in the folder C:\Program Files (x86)\Secure Soft\XML Signer (on a 32-bit Windows: C:\Program Files\Secure Soft\XML Signer) and the program is XML Signer.exe.

Command line parameters

"XML Signer.exe" <source file> <destination file | destination folder> [<configuration file>]
"XML Signer.exe" <source folder> <destination folder> [<configuration file>]
"XML Signer.exe" <XML file | folder>      (opens the window with the file or folder selected)
"XML Signer.exe" /?                      (shows this help)

• source folder: all the *.xml files of the folder are signed, with the same names, in the destination folder.
• configuration file: a file saved with File → Save Configuration As.... When it is not given, the current configuration of the window is used.
• Do not end a path written between quotes with a backslash: write "C:\Folder", not "C:\Folder\". Windows would read the last backslash and quote as one character and the arguments would be mixed up.

Sign one file

To automatically sign a file, use a command like this one:

c:\Program Files (x86)\Secure Soft\XML Signer>"XML Signer.exe" c:\TestFile.xml "c:\TestFile[signed].xml"

Sign a folder

To automatically sign all the files of a folder:

c:\Program Files (x86)\Secure Soft\XML Signer>"XML Signer.exe" c:\InputFolder c:\OutputFolder

Custom configuration

In some cases you need a different signature configuration (for example a different certificate or signature format) for different files or folders. To save a specific configuration, open the window, set everything you want, and go to File → Save Configuration As... Save the configuration in a file. Later you can use that file in batch mode to apply a different signature configuration on the signed files.

To automatically sign a folder using a custom configuration:

"XML Signer.exe" c:\InputFolder c:\OutputFolder c:\config-client2.xml

Result codes

XML Signer is a Windows application, so the command prompt does not wait for it. To wait and read the result code:

cmd:         start "" /wait "XML Signer.exe" C:\Demo\Invoices C:\Demo\Signed C:\Demo\invoices.config
             echo %errorlevel%

PowerShell:  (Start-Process "XML Signer.exe" -ArgumentList '"C:\Demo\Invoices" "C:\Demo\Signed" "C:\Demo\invoices.config"' -Wait -PassThru).ExitCode

Log files

Every file signed from the command line is recorded in log.txt, and every error in errorlog.txt. Both are in your user profile, in the folder %APPDATA%\Secure Soft\XML Signer\<version> (the last part is a folder named after the version of the program). The error messages are also written in the command window.

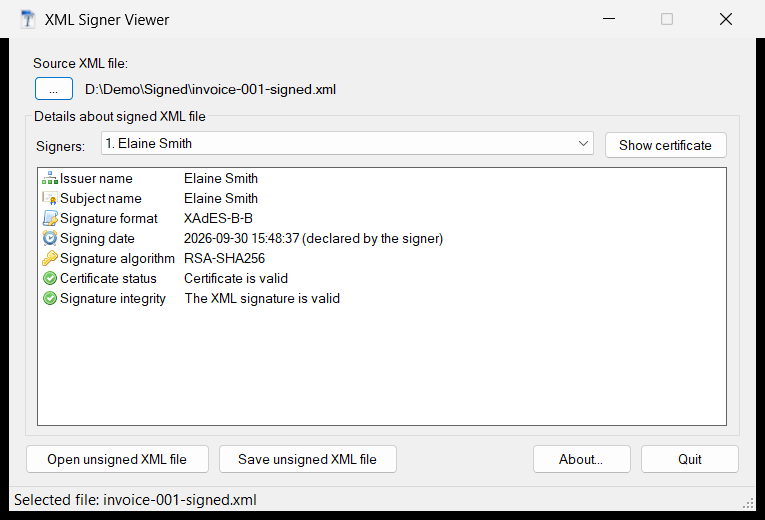

13. XML Signer Viewer

XML Signer Viewer is the second program of the product. Use it to check a signed document you created or received.

Opening a document

Start XML Signer Viewer, click ... next to Source XML file and pick the signed file. You can also right-click a file and choose Open with → XML Signer Viewer.

What you see

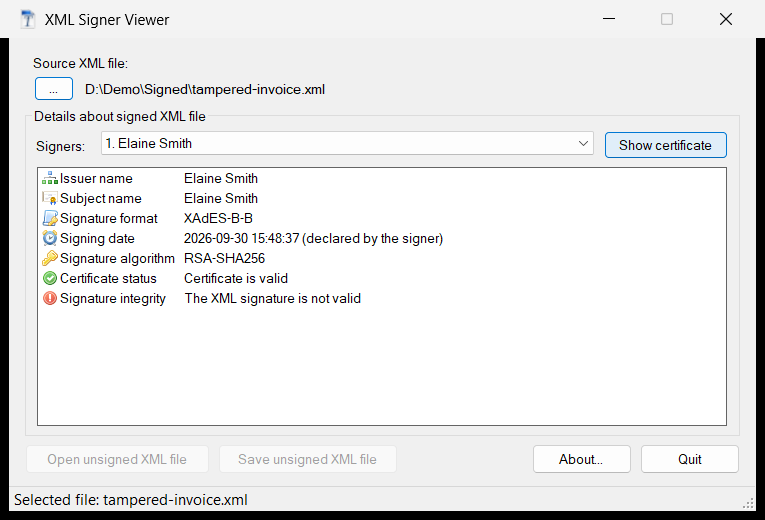

A document that was changed

If somebody changes the document after it was signed (here, the amount in an invoice), the Viewer says so clearly:

Buttons

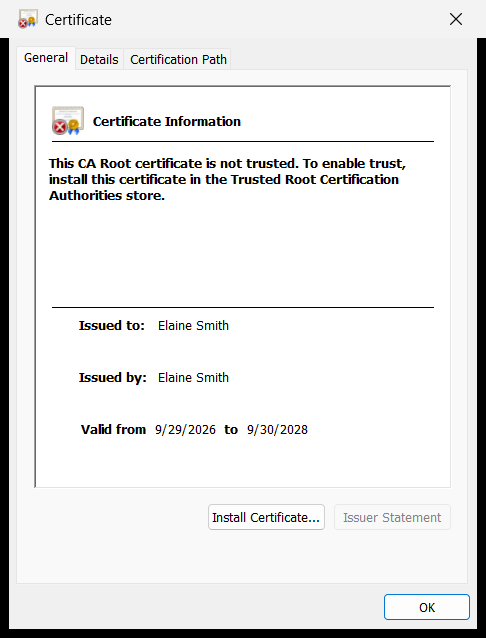

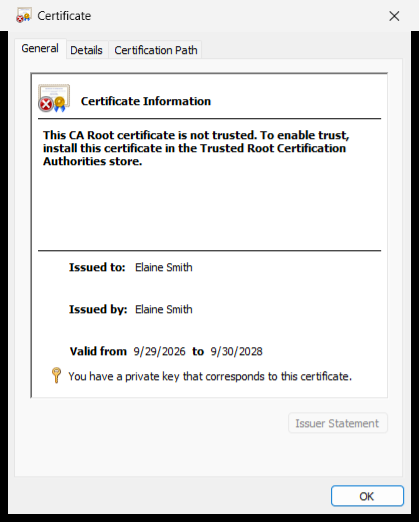

• Show certificate — opens the Windows certificate window for the selected signer, with all its details.
• Open unsigned XML file — opens a copy of the document without the signatures in the program associated with XML files on your computer.
• Save unsigned XML file — saves a copy of the document without the signatures.
• About... and Quit.

14. The Signature Library behind XML Signer

XML Signer is an application built on the Signature Library (SignLib), a library for .NET that creates and verifies digital signatures: PDF (PAdES), CAdES / PKCS#7, XML (XAdES), Office and more. Everything XML Signer does is available to your own programs and scripts through the library:

• Library page: https://www.signfiles.com/signature-library/
• Download (library, samples and PowerShell scripts): https://www.signfiles.com/sdk/SignatureLibrary.zip
• Code samples: https://www.signfiles.com/code-samples/

The library works with Windows PowerShell, C#, VB.NET and ASP.NET, on .NET Framework and on the recent .NET versions, and it supports certificates from PFX files, from the Windows store and from smart cards, USB tokens and HSMs.

From the window to the code

XAdES signatures are created with the class SignLib.Xml.XadesSignature. The table shows what each setting of XML Signer is in the library.

The library can do more than the window: detached signatures for files of any type, several signers, the place and the commitment of the signature, an explicit signature policy and the renewal of archive time stamps. They are shown in section 16.

15. Digitally sign XML files using Windows PowerShell

The main functions of XML Signer are available in the SignLib library, which you can download from this link: https://www.signfiles.com/sdk/SignatureLibrary.zip

To digitally sign an XML file using Windows PowerShell, simply download the library above and inspect the Signature Library\PowerShell Scripts folder. There you find ready-made scripts for the other kinds of documents; the script below does the same for XML, using the XAdES signature of XML Signer.

The script

Save it as signXmlDocument.ps1, in the same folder with SignLib.dll. It creates a test PFX certificate on the fly, signs the file in the XAdES-B-B format (SHA256) and verifies the result.

#digitally sign an XML file in the XAdES format, using a PFX certificate created on the fly
#the script can be configured to use an existing PFX file or a certificate loaded from Microsoft Store (smart card certificate)

if ($args.Length -eq 0)
{
    echo "Usage: signXmlDocument.ps1 <unsigned file> <signed file>"
}
else
{
    #SignLib.dll must be on the same folder as the script (or write its full path)
    $DllPath = Join-Path $PSScriptRoot 'SignLib.dll'
    [System.Reflection.Assembly]::LoadFrom($DllPath) | Out-Null

    #create a PFX digital certificate
    $generator = new-object -typeName SignLib.Certificates.X509CertificateGenerator("serial number")
    $pFXFilePassword = "tempP@ssword"
    $generator.Subject = "CN=Your Certificate, E=useremail@email.com, O=Organization"
    $generator.Extensions.AddKeyUsage([SignLib.Certificates.CertificateKeyUsage]::DigitalSignature)
    $generator.Extensions.AddEnhancedKeyUsage([SignLib.Certificates.CertificateEnhancedKeyUsage]::DocumentSigning)

    echo "Create the certificate..."
    $certificate = $generator.GenerateCertificate($pFXFilePassword)

    #digitally sign the file in XAdES format (XAdES-B-B, SHA256)
    $sign = new-object -typeName SignLib.Xml.XadesSignature("serial number")
    $sign.DigitalSignatureCertificate = [SignLib.Certificates.DigitalCertificate]::LoadCertificate($certificate, $pFXFilePassword)

    echo "Perform the digital signature..."
    $sign.ApplyDigitalSignature($args[0], $args[1])

    #verify the signature
    echo ("Signatures: " + $sign.GetNumberOfSignatures($args[1]))
    echo ("Valid: " + $sign.VerifyDigitalSignature($args[1]))
}

How to run it

How to run the Windows PowerShell script from the command line:

powershell -executionPolicy bypass -file d:\signXmlDocument.ps1 d:\test.xml "d:\test[signed].xml"

The result in the window:

Create the certificate...
Perform the digital signature...
Signatures: 1
Valid: True

16. Digitally sign XML files using C# or VB.NET

The main functions of XML Signer are available in the SignLib library (download). To digitally sign a file using C# or VB.NET, download the library, add a reference to SignLib.dll in your project, and inspect the sample projects of the package and the code samples page.

XML documents are signed with the class XadesSignature (namespace SignLib.Xml). It creates XAdES signatures, the European standard for advanced electronic signatures, at the four baseline levels B-B, B-T, B-LT and B-LTA (section 7), and verifies them.

All the examples below use these namespaces. Every example was run with the library to check the result.

using SignLib;                 // HashAlgorithm
using SignLib.Certificates;    // DigitalCertificate
using SignLib.Timestamping;    // time stamp settings
using SignLib.Xml;             // XadesSignature and its options

16.1 Sign an XML document and verify the signature

The smallest program: load a certificate from a PFX file, sign, and verify. The signature format is XAdES-B-B and the hash is SHA256, exactly like the defaults of XML Signer.

using SignLib;
using SignLib.Certificates;
using SignLib.Xml;

// "serial number" is the serial number of the library
XadesSignature signature = new XadesSignature("serial number");
signature.DigitalSignatureCertificate = DigitalCertificate.LoadCertificate(@"d:\certificate.pfx", "123456");

// apply the digital signature: the input file is not changed, the signed copy is saved in the output file
signature.ApplyDigitalSignature("invoice.xml", "invoice-signed.xml");

// verify the signature
XadesSignature verifier = new XadesSignature("serial number");
Console.WriteLine("Signatures: " + verifier.GetNumberOfSignatures("invoice-signed.xml"));
Console.WriteLine("Valid: " + verifier.VerifyDigitalSignature("invoice-signed.xml"));
Console.WriteLine("Signer: " + verifier.GetDigitalSignatureCertificate("invoice-signed.xml").Subject);
Console.WriteLine("Algorithm: " + verifier.GetSignatureAlgorithm("invoice-signed.xml"));

The result:

Signatures: 1
Valid: True
Signer: CN=Elaine Smith, O=Demo Company, C=US
Algorithm: RSA-SHA256

The same example in VB.NET:

Imports SignLib
Imports SignLib.Certificates
Imports SignLib.Xml

Module Module1
    Sub Main()
        Dim signature As New XadesSignature("serial number")
        signature.DigitalSignatureCertificate = DigitalCertificate.LoadCertificate("d:\certificate.pfx", "123456")
        signature.SignatureStandard = XadesSignatureStandard.XadesB
        signature.HashAlgorithm = HashAlgorithm.SHA256

        'apply the digital signature
        signature.ApplyDigitalSignature("invoice.xml", "invoice-signed.xml")

        Dim verifier As New XadesSignature("serial number")
        Console.WriteLine("Signatures: " & verifier.GetNumberOfSignatures("invoice-signed.xml"))
        Console.WriteLine("Valid: " & verifier.VerifyDigitalSignature("invoice-signed.xml"))
    End Sub
End Module

16.2 Signature levels, time stamp and long-term validation

The level of the signature is chosen with SignatureStandard. The levels that contain a time stamp (XadesT, XadesLT, XadesLTA) need the address of a time stamp server (section 8).

XadesSignature signature = new XadesSignature("serial number");
signature.DigitalSignatureCertificate = DigitalCertificate.LoadCertificate(@"d:\certificate.pfx", "123456");

signature.HashAlgorithm = HashAlgorithm.SHA384;                        // SHA256 (default), SHA384 or SHA512
signature.SignatureStandard = XadesSignatureStandard.XadesLT;          // XadesB, XadesT, XadesLT or XadesLTA
signature.TimeStamping.ServerUrl = new Uri("https://ca.signfiles.com/TSAServer.aspx");
signature.LtvLevel = XadesLtvLevel.IncludeOcspOnly;                    // the revocation data saved in the LT and LTA signatures

signature.ApplyDigitalSignature("invoice.xml", "invoice-lt.xml");

If the time stamp server asks for authentication, or you want to set other options of the request, use the other properties of TimeStamping:

signature.TimeStamping.UserName = "user";                  // only if the server requires authentication
signature.TimeStamping.Password = "password";
signature.TimeStamping.UseNonce = true;                    // a random number that protects the request
signature.TimeStamping.HashAlgorithm = HashAlgorithm.SHA256;
signature.MaxCrlSize = 2 * 1024 * 1024;                    // the largest CRL that is included, in bytes (default: 1 MB)

Renewing the archive time stamp (XAdES-B-LTA)

A XAdES-B-LTA signature is made to be kept for many years. After some time, add a new archive time stamp, before the certificate of the time stamp server expires. The signing certificate is not needed for this.

XadesSignature archive = new XadesSignature("serial number");
archive.TimeStamping.ServerUrl = new Uri("https://ca.signfiles.com/TSAServer.aspx");
archive.AddArchiveTimestamp("invoice-lta.xml", "invoice-lta-renewed.xml");

16.3 A certificate from the Windows store or a smart card

When the certificate is in the Windows store (for instance, a smart card certificate, section 6.2), load it with a search criterion. No window is shown, so the code can run without a user.

XadesSignature signature = new XadesSignature("serial number");

// the first certificate of the current user whose common name (CN) is "Elaine Smith"
// true = only the valid certificates (issued by a trusted authority); false = any certificate, also a self-signed test one
signature.DigitalSignatureCertificate = DigitalCertificate.LoadCertificate(true, DigitalCertificateSearchCriteria.CommonNameCN, "Elaine Smith");

// the PIN of the smart card, to avoid the PIN window. It applies to the next signature, made on this thread
DigitalCertificate.SmartCardPin = "1234";

signature.ApplyDigitalSignature("invoice.xml", "invoice-signed.xml");

Other search criteria are the other fields of the subject (OrganizationO, EmailE...), the thumbprint and the serial number of the certificate. To let the user choose the certificate in a Windows window, call DigitalCertificate.LoadCertificate() without parameters.

16.4 Detached signatures: sign a file of any type

By default the signature is added inside the XML document (enveloped). With a detached signature the signature is a separate XML file that refers to the signed file. The signed file can be of any type (PDF, DOCX, ZIP...) and it is not changed. The original file is needed to verify the signature.

XadesSignature signature = new XadesSignature("serial number");
signature.DigitalSignatureCertificate = DigitalCertificate.LoadCertificate(@"d:\certificate.pfx", "123456");
signature.SignaturePackaging = XadesSignaturePackaging.Detached;

signature.ApplyDigitalSignature("contract.pdf", "contract.pdf.xml");

// verify: the signature file and the signed file
XadesSignature verifier = new XadesSignature("serial number");
bool valid = verifier.VerifyDigitalSignature("contract.pdf.xml", "contract.pdf");   // False if contract.pdf was changed

16.5 Several signatures in the same document

A document can have several parallel signatures: a new signature does not invalidate the existing ones. Sign the already signed file again, then check each signature. The index of the signatures starts at 0.

XadesSignature first = new XadesSignature("serial number");
first.DigitalSignatureCertificate = DigitalCertificate.LoadCertificate(@"d:\manager.pfx", "123456");
first.ApplyDigitalSignature("invoice.xml", "invoice-signed.xml");

XadesSignature second = new XadesSignature("serial number");
second.DigitalSignatureCertificate = DigitalCertificate.LoadCertificate(@"d:\accountant.pfx", "123456");
second.ApplyDigitalSignature("invoice-signed.xml", "invoice-signed.xml");      // the output can be the input file

XadesSignature verifier = new XadesSignature("serial number");
int count = verifier.GetNumberOfSignatures("invoice-signed.xml");
for (int i = 0; i < count; i++)
    Console.WriteLine("Signature " + (i + 1) + ": " + verifier.VerifyDigitalSignature("invoice-signed.xml", i) + ", signer: "
        + verifier.GetDigitalSignatureCertificate("invoice-signed.xml", i).GetNameInfo(X509NameType.SimpleName, false));

(X509NameType is in the namespace System.Security.Cryptography.X509Certificates.)

A changed document

If the document is modified after the signature, the verification returns False. For example, after the total of an invoice is edited from 1250.00 to 9250.00:

Console.WriteLine("Valid: " + new XadesSignature("serial number").VerifyDigitalSignature("invoice-changed.xml"));
// Valid: False

16.6 More options of the signature

These options are not in the window of XML Signer. They add information to the signature when a regulation or the receiver requires it.

// the commitment declared by the signer: approval, origin, receipt...
signature.CommitmentType = XadesCommitmentType.ProofOfApproval;

// the place where the signature was created
signature.SignatureProductionPlace = new XadesProductionPlace { City = "Bucharest", CountryName = "Romania" };

// an explicit signature policy: identifier (OID or URI), digest of the policy document, the algorithm of the digest, the address of the policy
signature.SetSignaturePolicyInformation("2.16.724.1.3.1.1.2.1.9", policyHash, "SHA256", "https://example.com/policy.pdf");

16.7 How the signature looks

The signature is added at the end of the XML document. The values below are shortened. SigningTime, the certificate of the signer (SigningCertificateV2) and the format of the signed data are the signed XAdES properties; a time stamp (XAdES-B-T and above) is added as an additional property of the signature.

<Invoice>
  <Number>INV-2026-001</Number>
  <Customer>Demo Company</Customer>
  <Total currency="EUR">1250.00</Total>
  <Signature Id="Signature-97744c13a070b011" xmlns="http://www.w3.org/2000/09/xmldsig#">
    <SignedInfo>
      <CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#" />
      <SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256" />
      <Reference Id="r-97744c13a070b011-1" URI="">           <!-- the document -->
        ...
        <DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256" />
        <DigestValue>jakNhmN0...</DigestValue>
      </Reference>
      <Reference URI="#SignedProperties-97744c13a070b011" Type="http://uri.etsi.org/01903#SignedProperties">
        ...                                                   <!-- the XAdES properties -->
      </Reference>
    </SignedInfo>
    <SignatureValue>4Wg+fhw5jb23...</SignatureValue>
    <KeyInfo><X509Data><X509Certificate>MIIDCzCC...</X509Certificate></X509Data></KeyInfo>
    <Object>
      <xades:QualifyingProperties Target="#Signature-97744c13a070b011" xmlns:xades="http://uri.etsi.org/01903/v1.3.2#">
        <xades:SignedProperties Id="SignedProperties-97744c13a070b011">
          <xades:SignedSignatureProperties>
            <xades:SigningTime>2026-09-30T17:40:22Z</xades:SigningTime>
            <xades:SigningCertificateV2> ... </xades:SigningCertificateV2>
          </xades:SignedSignatureProperties>
          <xades:SignedDataObjectProperties>
            <xades:DataObjectFormat ObjectReference="#r-97744c13a070b011-1">
              <xades:MimeType>text/xml</xades:MimeType>
            </xades:DataObjectFormat>
          </xades:SignedDataObjectProperties>
        </xades:SignedProperties>
      </xades:QualifyingProperties>
    </Object>
  </Signature>
</Invoice>

16.8 Good to know

17. Problems and solutions

18. Glossary

19. Warning and disclaimer, trademarks

Every effort has been made to make this manual as complete and accurate as possible, but no warranty or fitness is implied. The information provided is on an “as is” basis. The author shall have neither liability nor responsibility to any person or entity with respect to any loss or damages arising from the information contained in this manual.

.NET, Windows, PowerShell, SmartScreen and Visual Studio are trademarks of Microsoft Corporation. All other trademarks are the property of their respective owners.
